*Images are representative.

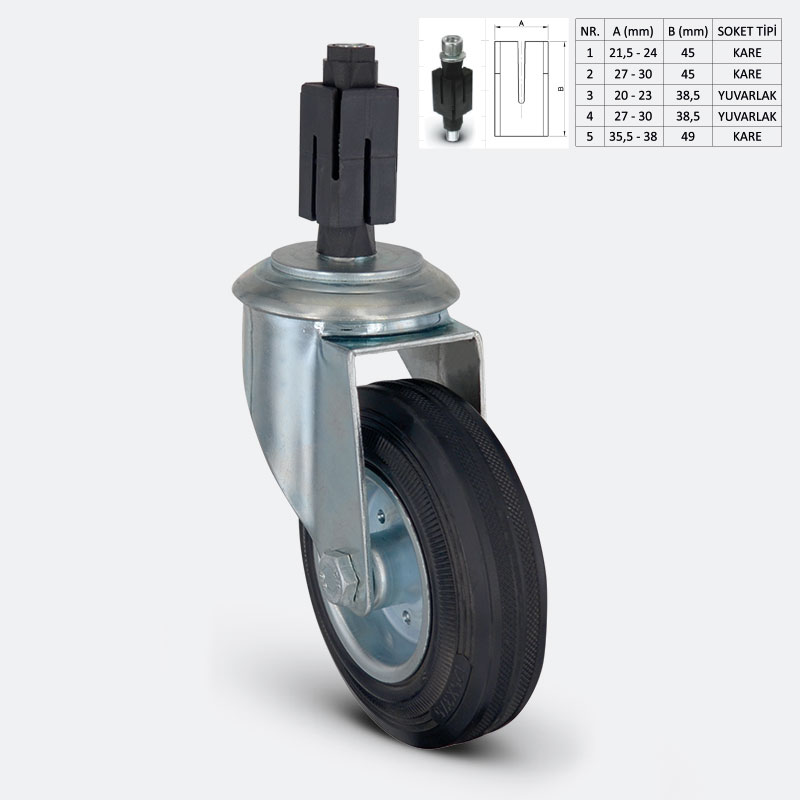

EM 07 ZKZ 125 F

  • Expender Fitting
  • |
  • Brake
  • 125 mm Wheel Size
  • 37,5 mm Wheel Width
  • 160 KG Load Capacity

BRACKET/ FORK / HOUSING

Bracket made of pressed steel, white zinc plated, double ball bearing swivel head, plastic dustguard, wheel axle with bolt and nut

WHEEL ( )

Polyamide wheel (naturel white), without threadguards, plain bore bearing

TECHNICAL SPECIFICATIONS
Wheel Width:37,5  mm
All Height:157   mm
Pin Bolt Diameter:1-2-3-4-5  mm
Pin Bolt Length:70  mm
Total weight: 1141   gr
Load Capacity:160  kg
Wheel Cover:+
Wheel Size:125  mm
Model

To download CAD images of the product you need to make a request. After confirmation of your request, you Single Use Password It will be sent.

Password Request

CAD VISUAL DOWNLOAD PASSWORD

Send
