EM 07 SPR 125 F

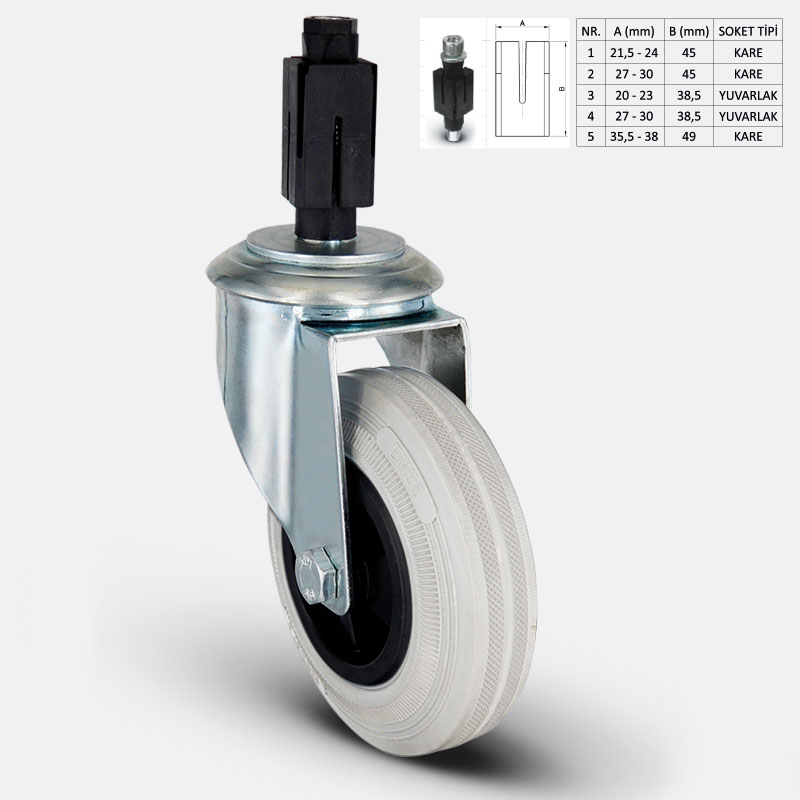

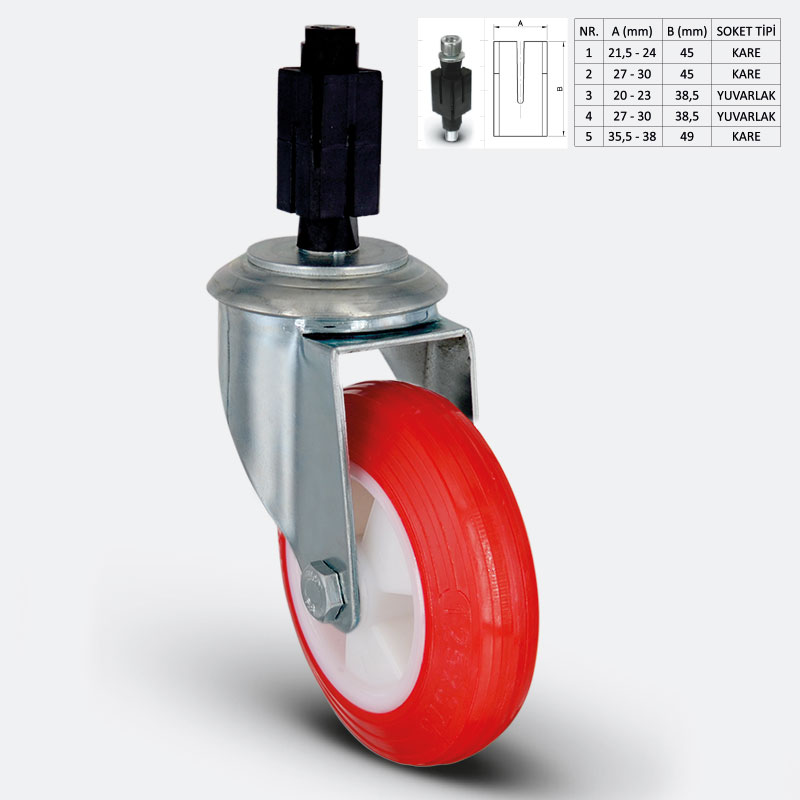

*Images are representative.

EM 07 SPR 125 F

Expender Fitting
|
Brake

125 mm Wheel Size
37,5 mm Wheel Width
110 KG Load Capacity

BRACKET/ FORK / HOUSING

Parts pressed from sheet steel with blue passivated zinc coating, Double stack ball bearing swivel axle, Plastic dust protection, Connection types compatible with swivel head (03-04-05-07), Brake system locking tong and wheel at the same time, Pipe mounted wheel axle, Fixed tong machined from sheet steel matching with table tongs.

WHEEL ( )

Sheet steel with blue passivated zinc plating, Wheel sidewalls made of black rubber tire with polyamide bushing bearings joined with rivets, 82+3 Shore A / -20°C+60°C

TECHNICAL SPECIFICATIONS

Wheel Width:37,5 mm

All Height:157 mm

Pin Bolt Diameter:1-2-3-4-5 mm

Pin Bolt Length:70 mm

Total weight: 1466 gr

Load Capacity:110 kg

Wheel Cover:+

Wheel Size:125 mm

Model

To download CAD images of the product you need to make a request. After confirmation of your request, you Single Use Password It will be sent.
