*Images are representative.

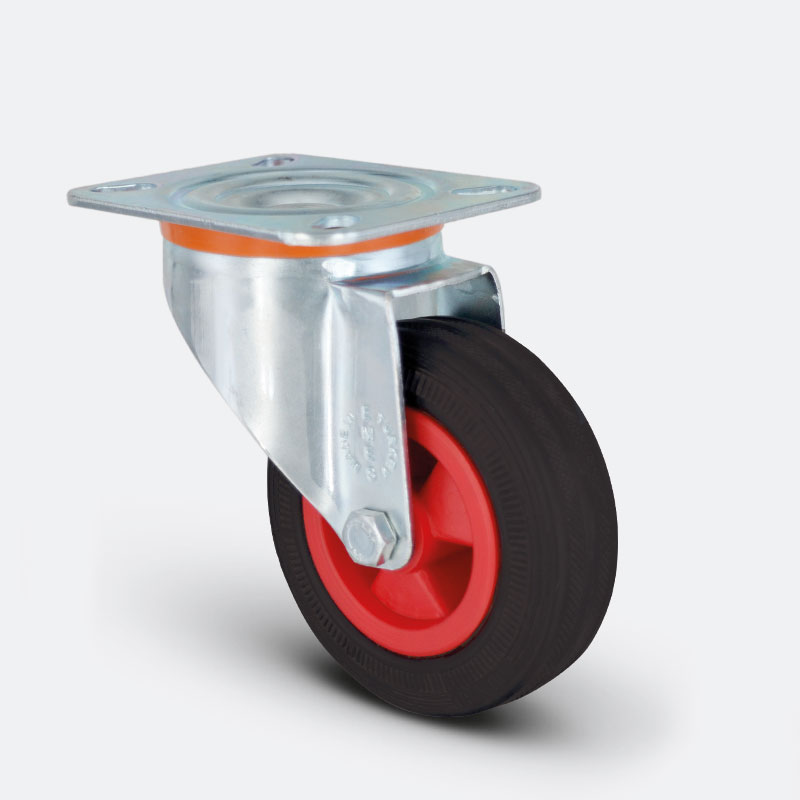

EM 01 ZMZ 80

  • Plate Fitting
  • 80 mm Wheel Size
  • 30 mm Wheel Width
  • 120 KG Load Capacity

BRACKET/ FORK / HOUSING

Bracket made of pressed steel, white zinc plated, double ball bearing swivel head, plastic dustguard, wheel axle with bolt and nut

WHEEL ( )

Polyamide wheel (naturel white), without threadguards, roller bearing

TECHNICAL SPECIFICATIONS
Wheel Width:30  mm
All Height:106   mm
Table Dimensions:85x100  mm
Hole Distance:60x80  mm
Total weight: 592   gr
Load Capacity:120  kg
Wheel Cover:+
Wheel Size:80  mm
THIS SERIES SAME PRODUCTS

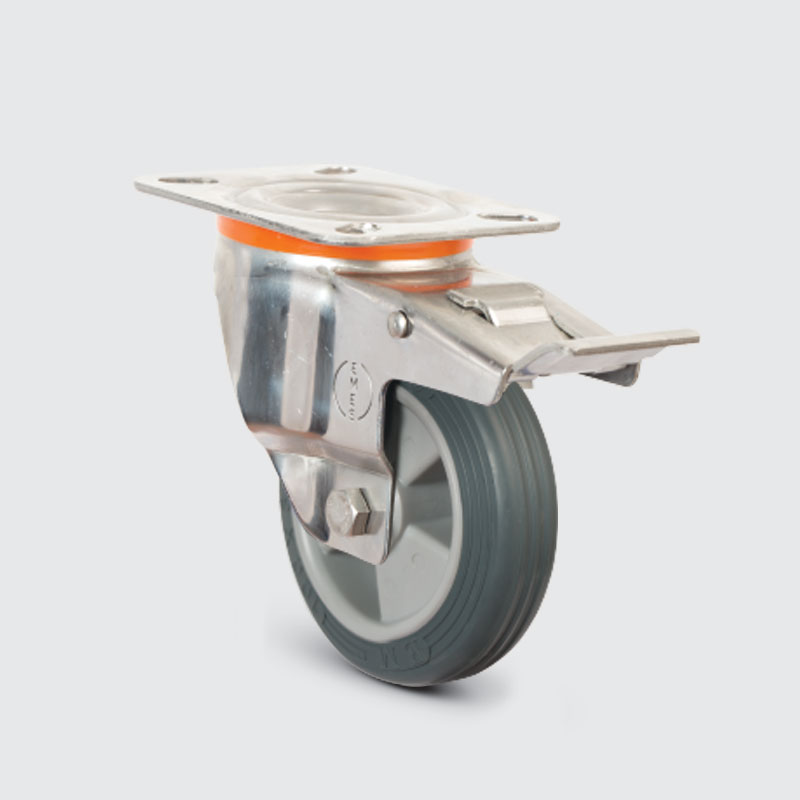

EM 01 ZMP 80 F

Plate Fitting, With Brake

  • Wheel Size80 mm
  • Wheel Width30 mm
  • Load Capacity90 kg

EM 01 SMRg 80

Plate Fitting

  • Wheel Size80 mm
  • Wheel Width25 mm
  • Load Capacity60 kg

EM 01 MKRg 80

Plate Fitting

  • Wheel Size80 mm
  • Wheel Width25 mm
  • Load Capacity60 kg

EM 01 SPRg 80 F

Plate Fitting, With Brake

  • Wheel Size80 mm
  • Wheel Width25 mm
  • Load Capacity60 kg
