*Images are representative.

EM 01 ZKP 200 F

  • Plate Fitting
  • |
  • Brake
  • 200 mm Wheel Size
  • 50 mm Wheel Width
  • 230 KG Load Capacity

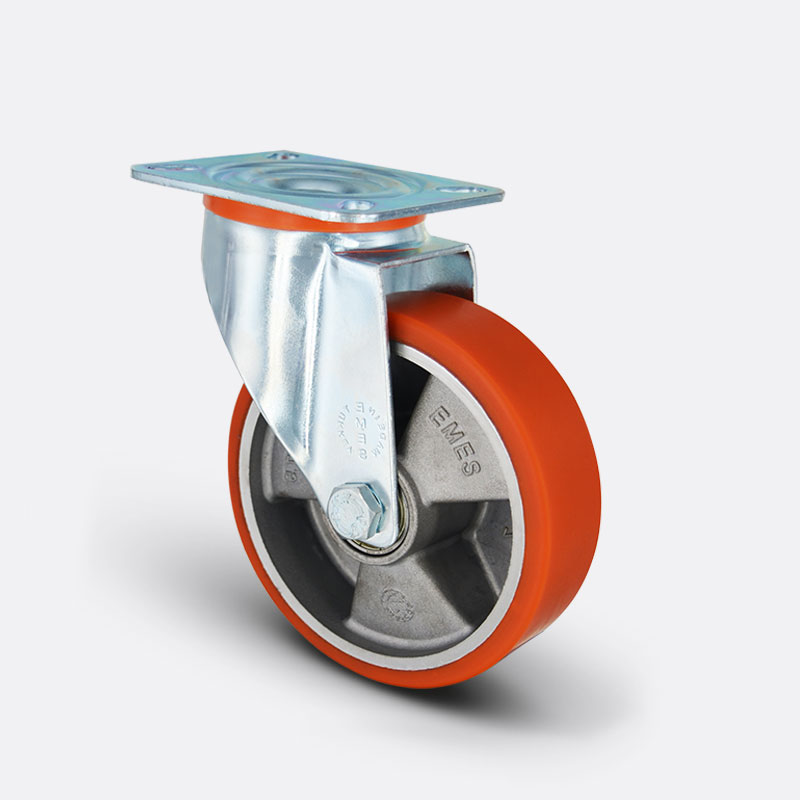

BRACKET/ FORK / HOUSING

Bracket made of stainless steel, double ball bearing swivel head, plastic dustguard, wheel axle with bold and nut

WHEEL ( )

Wheel centre made of Polyamide, thermoplastic polyurethane tread, without threadguards, plain bore bearing

TECHNICAL SPECIFICATIONS
Wheel Width:50  mm
All Height:242   mm
Table Dimensions:115x141  mm
Hole Distance:80x105  mm
Total weight: 2720   gr
Load Capacity:230  kg
Wheel Cover:-
Wheel Size:200  mm
