EM 01 SPR 80

  • Plate Fitting
  • 80 mm Wheel Size
  • 25 mm Wheel Width
  • 60 KG Load Capacity

BRACKET/ FORK / HOUSING

Bracket made of pressed steel, white zinc plated, double ball bearing swivel head, plastic dustguard, wheel axle with bolt and nut

WHEEL ( )

Wheel centre made of pressed steel, black rubber tyre (85 Shore A), without threadguards, plastic bearing

TECHNICAL SPECIFICATIONS
Wheel Width:25  mm
All Height:106   mm
Table Dimensions:85x100  mm
Hole Distance:60x80  mm
Total weight: 695   gr
Load Capacity:60  kg
Wheel Cover:+
Wheel Size:80  mm
Model

To download CAD images of the product you need to make a request. After confirmation of your request, you Single Use Password It will be sent.

Password Request

CAD VISUAL DOWNLOAD PASSWORD

Send

THIS SERIES SAME PRODUCTS

EM 01 VKV 80 F

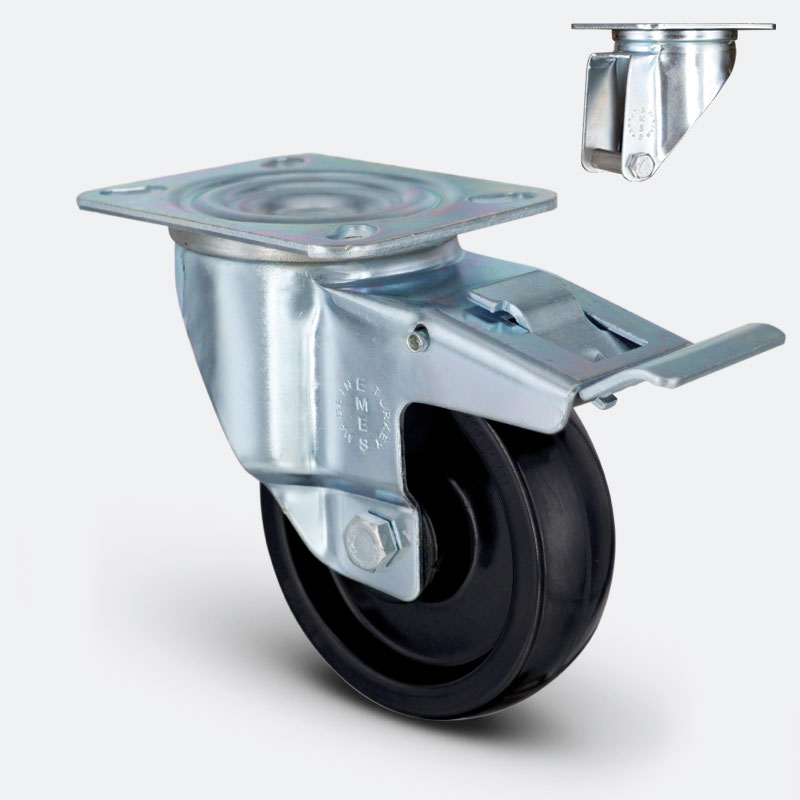

Plate Fitting, With Brake
