Emes Teker EM01SPR125F ürün kodlu tekerlek

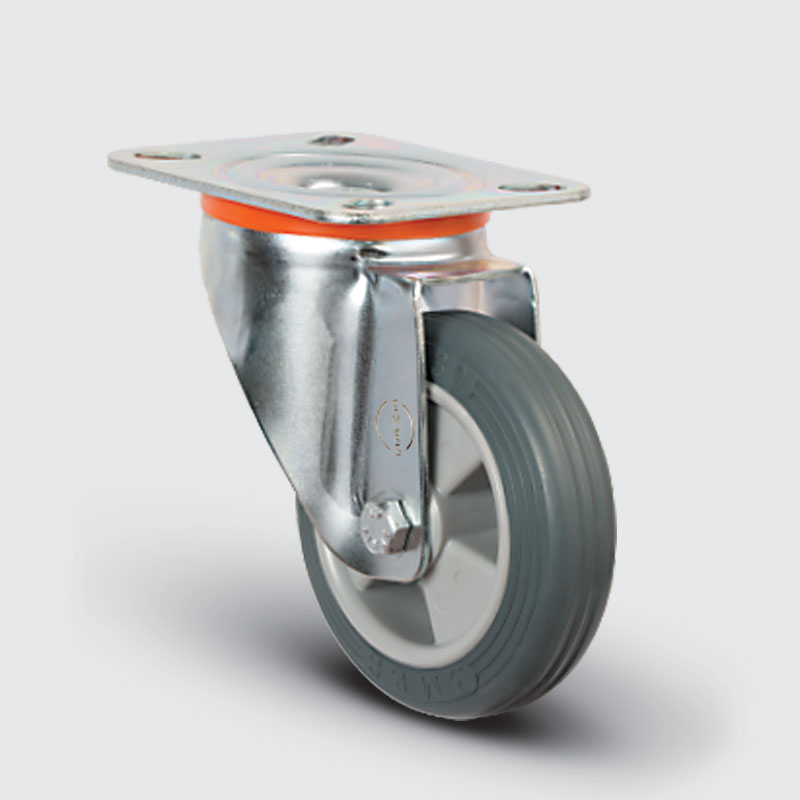

*Images are representative.

EM 01 SPR 125 F

BRACKET/ FORK / HOUSING

Bracket made of pressed steel, white zinc plated, double ball bearing swivel head, plastic dustguard, wheel axle with bolt and nut

WHEEL ( )

Wheel centre made of pressed steel, black rubber tyre (85 Shore A), without threadguards, plastic bearing

TECHNICAL SPECIFICATIONS

Wheel Width:37,5 mm

All Height:157 mm

Table Dimensions:85x100 mm

Hole Distance:60x80 mm

Total weight: 1407 gr

Load Capacity:110 kg

Wheel Cover:+

Wheel Size:125 mm

Model

To download CAD images of the product you need to make a request. After confirmation of your request, you Single Use Password It will be sent.

Password Request

CAD VISUAL DOWNLOAD PASSWORD

Send
