EM 01 SMR 125 F

  • Plate Fitting
  • |
  • Brake
  • 125 mm Wheel Size
  • 37,5 mm Wheel Width
  • 110 KG Load Capacity

BRACKET/ FORK / HOUSING

Bracket made of pressed steel, white zinc plated, double ball bearing swivel head, plastic dustguard, wheel axle with bolt and nut

WHEEL ( )

Wheel centre made of pressed steel, black rubber tyre(85 Shore A), Without threadguards,roller bearing

TECHNICAL SPECIFICATIONS
Wheel Width:37,5  mm
All Height:157   mm
Table Dimensions:85x100  mm
Hole Distance:60x80  mm
Total weight: 1407   gr
Load Capacity:110  kg
Wheel Cover:+
Wheel Size:125  mm
THIS SERIES SAME PRODUCTS

EM 01 MKR 125

Plate Fitting

  • Wheel Size125 mm
  • Wheel Width37,5 mm
  • Load Capacity110 kg

EM 01 MMRg 125

Plate Fitting

  • Wheel Size125 mm
  • Wheel Width37,5 mm
  • Load Capacity110 kg

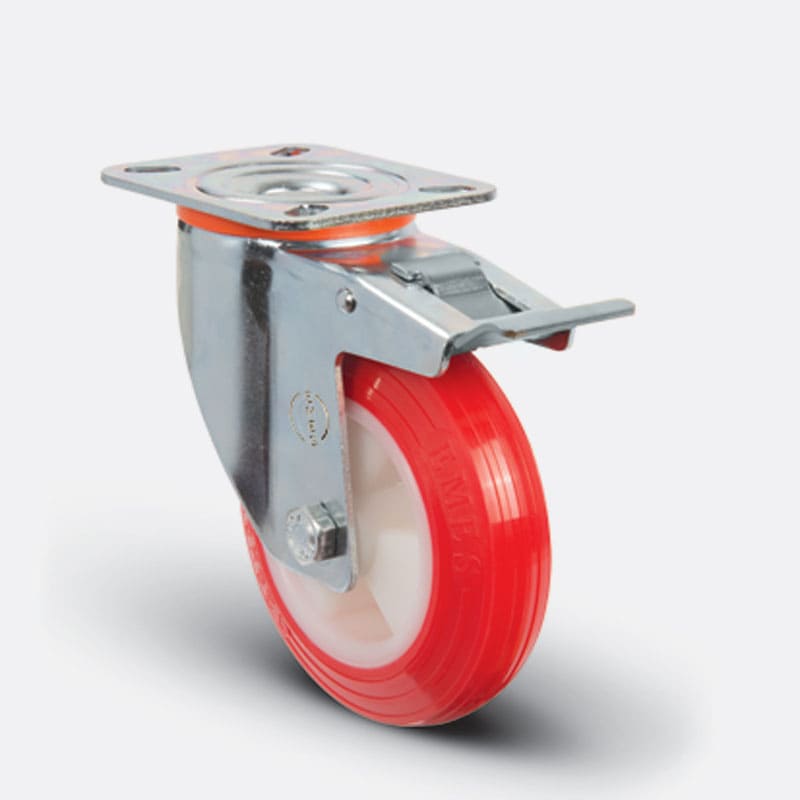

EM 01 ZMZ 125 F

Plate Fitting, With Brake

  • Wheel Size125 mm
  • Wheel Width37,5 mm
  • Load Capacity160 kg

EM 01 SMRg 125

Plate Fitting

  • Wheel Size125 mm
  • Wheel Width37,5 mm
  • Load Capacity110 kg
