EM 01 SMR 100

  • Plate Fitting
  • 100 mm Wheel Size
  • 30 mm Wheel Width
  • 75 KG Load Capacity

BRACKET/ FORK / HOUSING

Bracket made of pressed steel, white zinc plated, double ball bearing swivel head, plastic dustguard, wheel axle with bolt and nut

WHEEL ( )

Wheel centre made of pressed steel, black rubber tyre(85 Shore A), Without threadguards,roller bearing

TECHNICAL SPECIFICATIONS
Wheel Width:30  mm
All Height:127   mm
Table Dimensions:85x100  mm
Hole Distance:60x80  mm
Total weight: 835   gr
Load Capacity:75  kg
Wheel Cover:+
Wheel Size:100  mm
THIS SERIES SAME PRODUCTS

EM 01 ZMRM 100 F

Plate Fitting, With Brake

  • Wheel Size100 mm
  • Wheel Width32 mm
  • Load Capacity120 kg

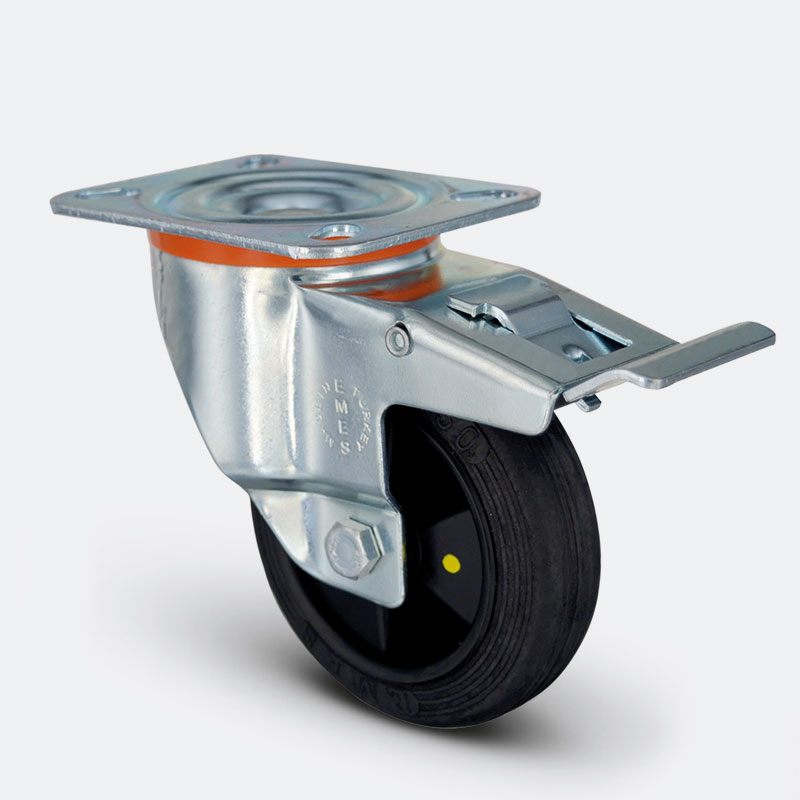

EM 01 MKT 100

Plate Fitting

  • Wheel Size100 mm
  • Wheel Width32 mm
  • Load Capacity80 kg

EM 01 MBTM 100 F

Plate Fitting, With Brake

  • Wheel Size100 mm
  • Wheel Width35 mm
  • Load Capacity140 kg

EM 01 ZMP 100 F

Plate Fitting, With Brake

  • Wheel Size100 mm
  • Wheel Width30 mm
  • Load Capacity110 kg
