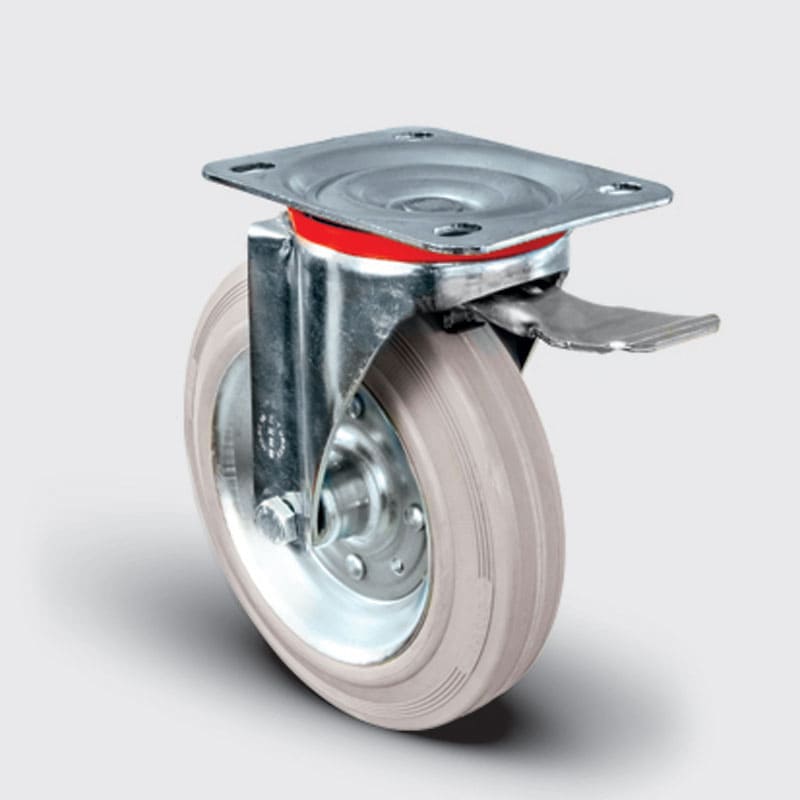

EM 01 MMRG 200 F

  • Plate Fitting
  • |
  • Brake
  • 200 mm Wheel Size
  • 50 mm Wheel Width
  • 180 KG Load Capacity

BRACKET/ FORK / HOUSING

Parts pressed from sheet steel with blue passivated zinc coating, Double stack ball bearing swivel axle, Plastic dust protection, Connection types (03-04-05-07) compatible with swivel head, Brake system locking tong and wheel at the same time, Pipe mounted wheel axle, Fixed tong machined from sheet steel matching with table tongs.

WHEEL ( )

Polypropylene Pulley (PP) with Roller Bearing Housing, Gray Rubber Non-marking Insert Rubber Wheel, 82+3 Shore A /-20°C+60°C

TECHNICAL SPECIFICATIONS
Wheel Width:50  mm
All Height:242   mm
Table Dimensions:115x141  mm
Hole Distance:80x105  mm
Total weight: 3095   gr
Load Capacity:180  kg
Wheel Cover:-
Wheel Size:200  mm
